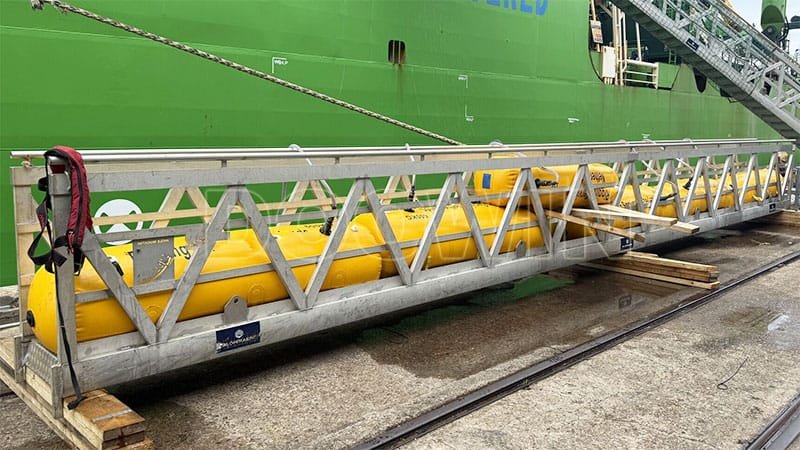

Gangway load testing water weight bags can be used for the load testing of gangways, accommodation ladder, small bridges, platforms, floor, and other long structures.
Our standard gangway test water bags are 650L and 1300L capacity. For the larger gangways and small bridges can be tested with our Deck & Floor Water Bags. We also can make other size and shape load test bags upon the clients’ special request.

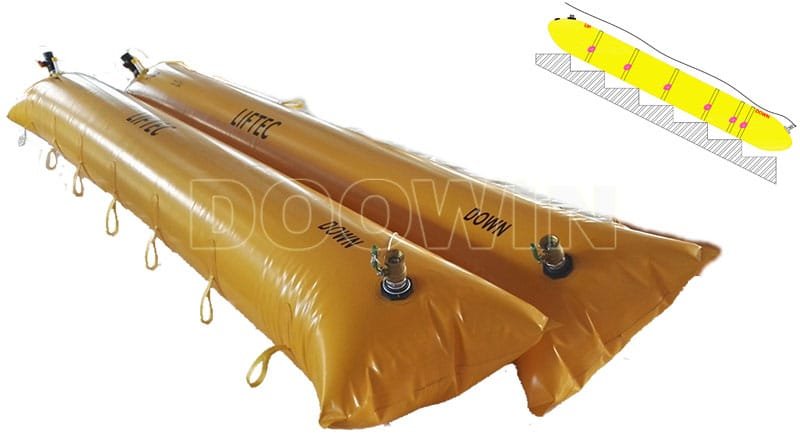

DOOWIN gangway load test water bags are made of heavy-duty PVC coating fabric material. Each gangway load testing bags equip with one filling valve, one discharge valve, and one air-relief valve. The discharge valve can be controlled by one rope. There are some handles at both sides. The worker can fix the water bag test weights by these handles.
The below specification is a common sizes proof load bag. In addition, we also make other size and other capacity load test water bags upon request.
Model | GW6000 | GW4500 | GW3000 |
|---|---|---|---|
Capacity | 1300L | 1000L | 650L |
Length | 6000mm | 4500mm | 3000mm |
Filled Width | 620mm | 620mm | 620mm |
Filling Valve | Yes | Yes | Yes |
Discharge Valve | Yes | Yes | Yes |
Note: The above size and weight are only for reference. We may change its parameters according to our design.
We offer specially designed sausage-type water-filled proof load bags to do the Static and dynamic testing for the lifeboats and davits
For static and dynamic lifeboat davit load test, Lifeboat davit load testing is safely and efficiently achieved using water-filled weight water bags.
Pillow-type water tanks can be used to verify the structural integrity of buildings, bridges, elevators, loading ramps, gangways, accommodation, ladders, and decks.

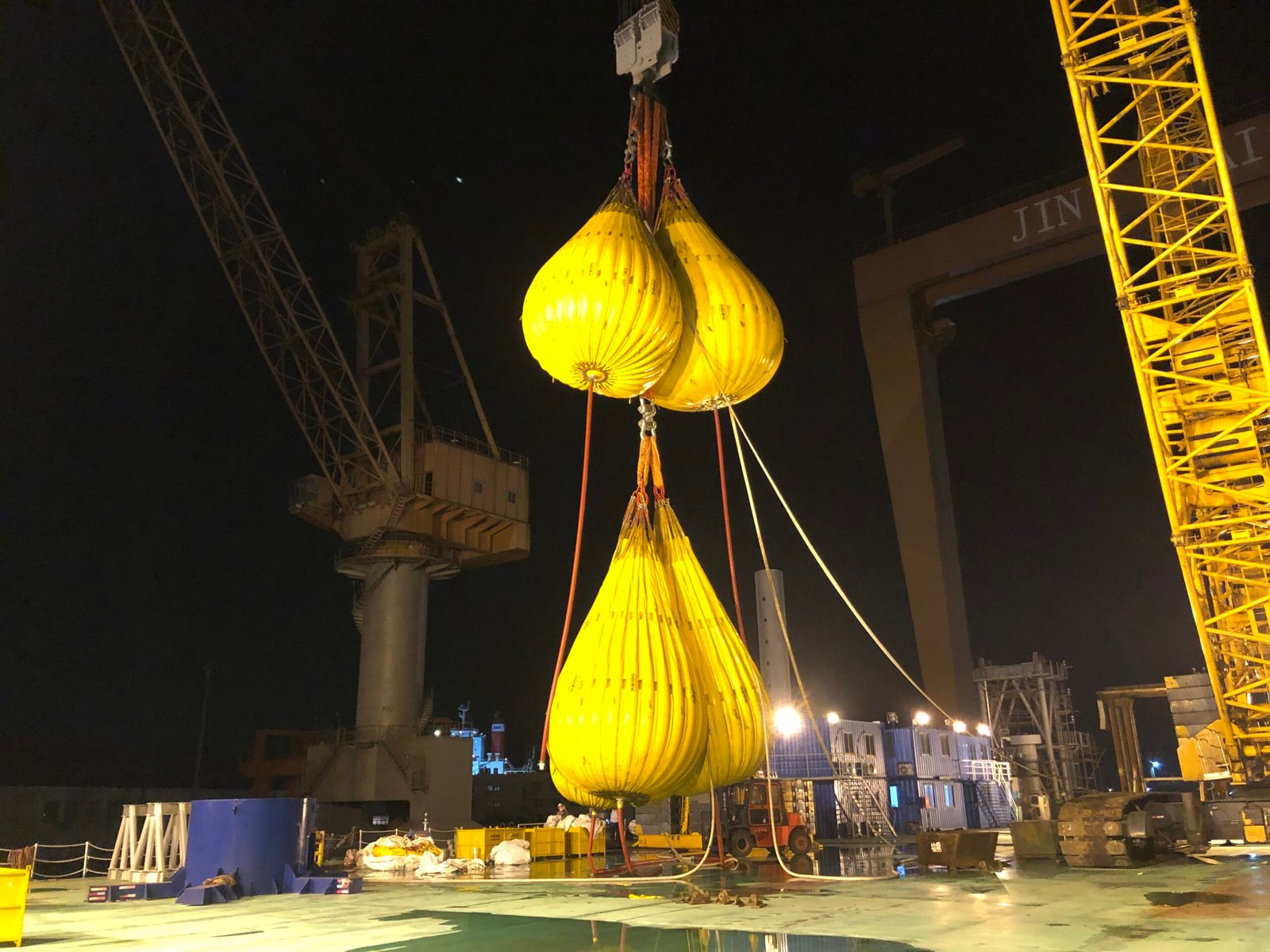

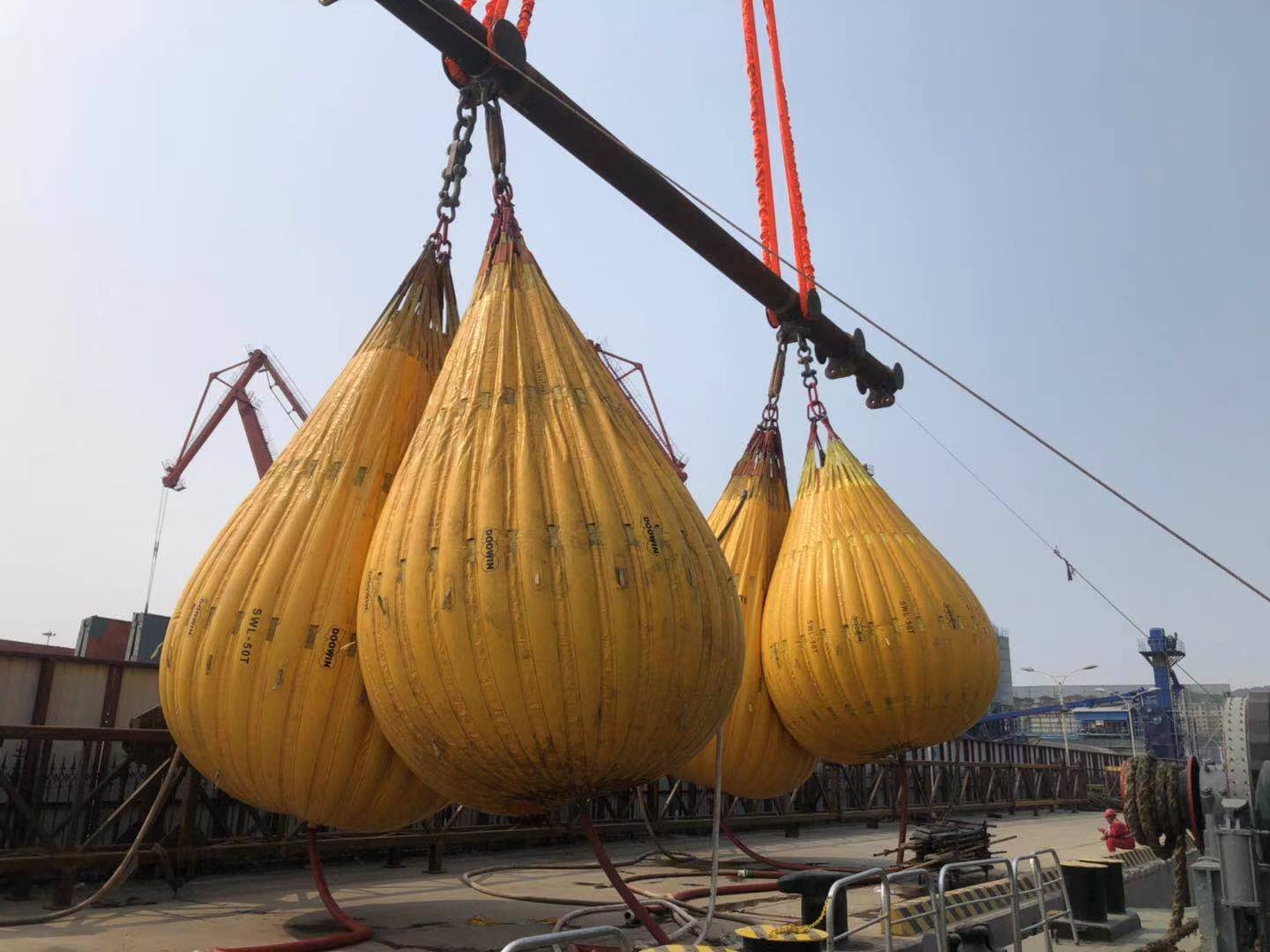

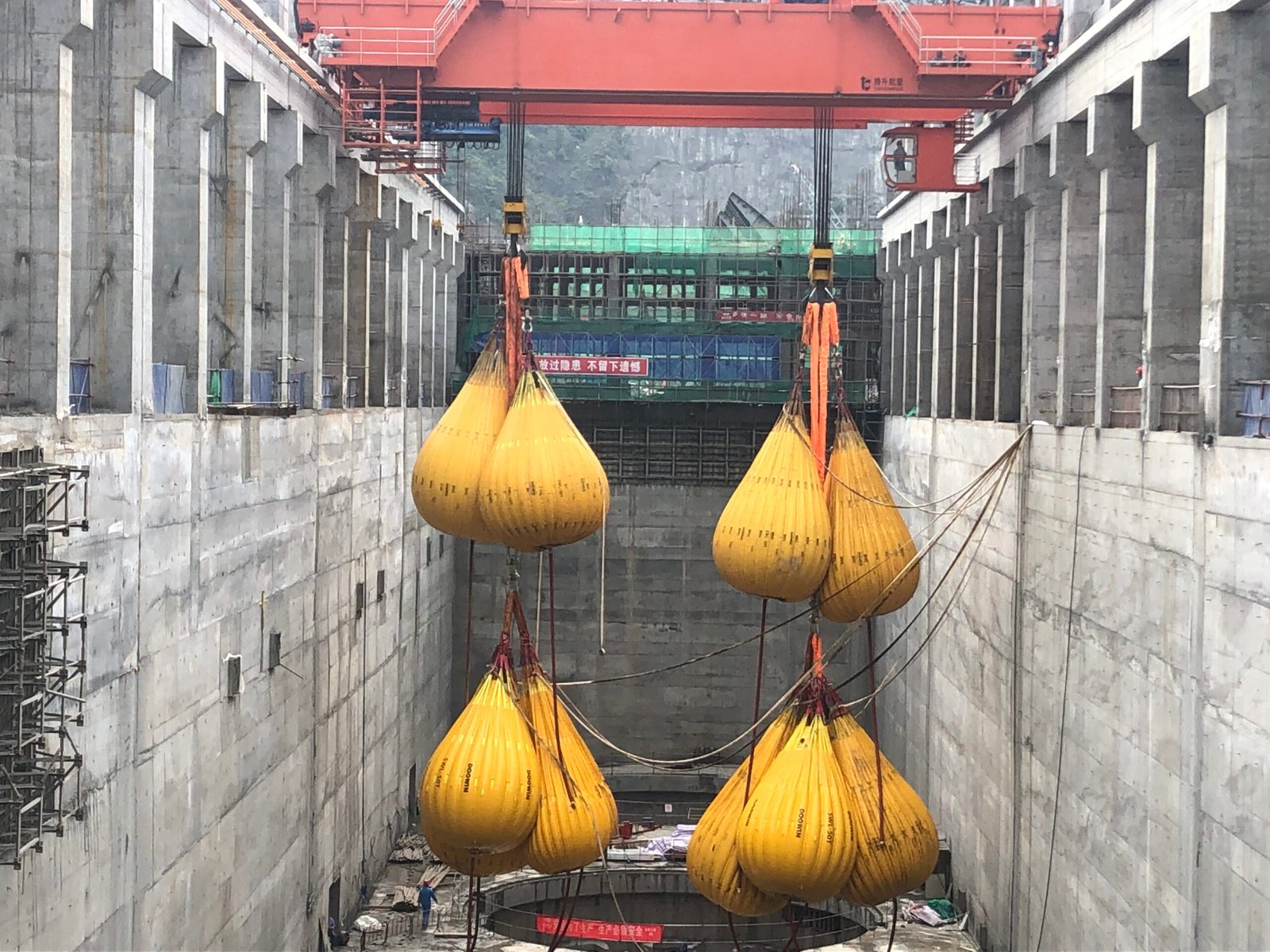

Water-filled proof load bags offer an easy, safe, and cost-effective way to load test lifting equipment and load-bearing structures.
DOOWIN maintains an extensive inventory of proof-load testing equipment, such as water-weight bags, load cell/Dynamometers, wire ropes, round slings, pumps, and water hoses. Our engineers and workers are very experienced with load testing.
